AMS Performance Intake Manifold with Carbon Fiber Plenums

The AMS Performance R35 GT-R Carbon Fiber Intake Manifold has been painstakingly designed by AMS to be the most efficient and power producing one available. Attention to every detail was accounted for when creating this high performance induction component. On looks alone, you might agree, it makes the perfect centerpiece for your GT-R’s engine bay. However, if you’re familiar with the Alpha product line, you already understand that our aspiration has always been to offer you much more!

The Most Power Producing VR38 Intake Manifold On The Market

Unlike most aftermarket manifolds where gains are seen near the top of the power band and suffer near the bottom, the Alpha GT-R Carbon Fiber manifold provides global performance. Compared to the leading cast aluminum intake manifold on the market, our piece not only produced more HP and torque but it did so through the ENTIRE POWER BAND! From the moment your turbos spool up, the Alpha intake manifold starts making more power and torque. The best part is nothing is sacrificed in terms of response or power under the curve.

Alpha carbon fiber intake — Sample Alpha 10 GT-R Test Results: Alpha Performance GT-R Carbon Fiber Intake Manifold vs Stock (22psi)

Larger, Perfectly Molded Carbon Fiber Plenums

Proper function of the plenum is extremely important to the performance of any intake manifold. In the case of the GT-R, there are two plenums – one for each bank. Not only should they be sized for correct volume, they provide even more benefits when shaped in such a way that distributes charged air more evenly amongst each of the precisely machined CNC aluminum velocity stacks leading into the runners. Both lightweight carbon fiber plenums are molded and tapered to channel charged air effectively – reducing turbulence and accelerating the delivery of charged air to the engine. By maintaining balance and sustaining maximum airflow velocity and pressure when needed, your GT-R benefits by outputting more horsepower!

The Difference Is In The Details

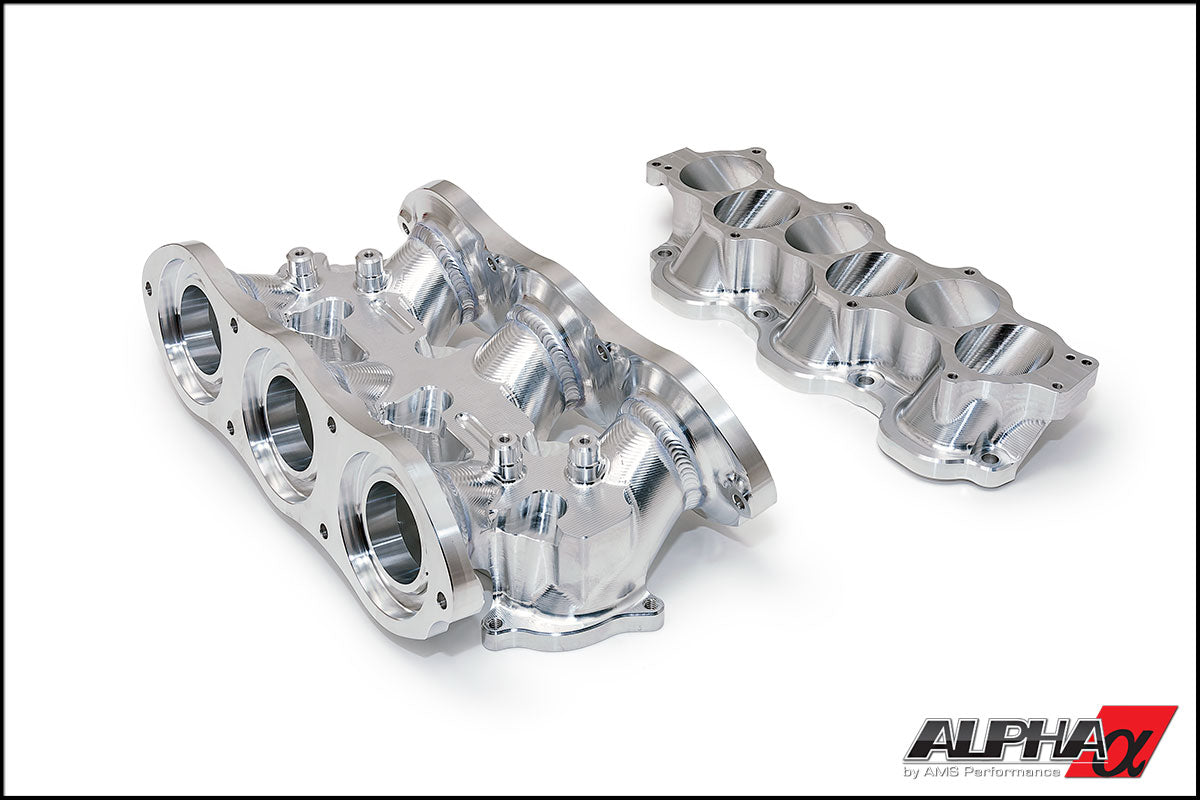

Each manifold is matched to its upper and lower running section to maintain the perfect flow of air from the throttle body to the cylinder heads. To achieve this, our engineers called for very tight tolerances where the upper and lower sections adjoin. That wasn’t enough though. To perfectly align the upper and lower ports, they took it a step further and installed dowel locating pins to ensure there were no steps or protrusions that could cause unnecessary turbulence found on other aftermarket manifolds.

Rigorously Tested To Last

We wanted to offer an intake manifold with the highest level of strength and reliability so we teamed up with an expert in the field. Using aircraft grade epoxies and carbon fiber layering methods, we constructed a manifold that would match the strength tolerances of key components used in the aerospace industry. We then cycle tested our finalized design 144,000 times from 0–50psi in a high heat environment in order to replicate over 20 years of operation by the average GT-R owner! In the end, a burst test was performed where the test manifold was subjected to over 150psi! No other manifold on the market has undergone such grueling tests!

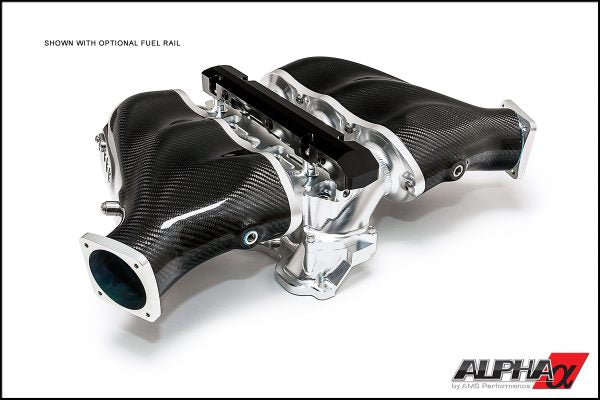

Third Fuel Rail Engineered To Support Incredible Power

For extremely high-powered GT-Rs, provisions are available on the manifold and a secondary fuel rail can be installed which will supply enough fuel to feed a VR engine capable of producing over 2000+ horsepower. Positioning of fuel injectors is critical since optimizing the spray angle of the injector can improve fuel atomization and efficiency. Our engineers took all of these ideas to heart when designing our third rail setup to support a total of either 12 or 18 individual injectors.

Additional Support With Optional Alpha Billet Big Bore Throttle Bodies

Outgrown the stock GT-R throttle bodies? If your car is making over 800HP, they are probably a restriction. We manufacture the largest throttle bodies for the R35 GT-R – designed to work with this intake manifold.

Choose an Anodized Color Finish

Would you like your Alpha intake manifold to complement the color of your GT-R? Choose from a stunning array of anodized finishes to give your engine bay that added custom touch!

Maximize horsepower and add the ultimate focal point to your engine bay, order your Alpha GT-R Carbon Fiber Intake Manifold today!

Exclusive Benefits

The most powerful VR38 intake manifold on the market
Show stopping design
Over 30% lighter than the leading cast intake manifold
Dowel pin aligned for smooth, continuous flow between upper and lower runners
Dual MAP sensor ports allow for monitoring bank to bank differences in boost pressure
Retains PCV and functions exactly like stock
Extra vacuum ports on plenums

Includes

Carbon fiber manifold plenums
Billet upper and lower runner sections
Vacuum and Boost Fitting Kit
Adapters for Stock Throttle Bodies

Options

Anodizing Colors – Clear (raw aluminum/silver), Black, Blue, Gold, Purple, Red. Custom colors available upon request.
Secondary Fuel Rail for 12 Injector System (Optional)
Secondary Fuel Rail for 18 Injector System (Optional)

Applications

2009+ Nissan R35 GT-R
Fits all USDM, JDM and European Models (LHD & RHD)

Product Notes

AMS Performance R35 GT-R Big Bore Billet Throttle Bodies available separately
Custom PCV routing would be needed if the owner wishes to retain its functionality
Alpha upper intercooler pipe adapter for current Alpha intercooler piping or full Alpha Induction Kit is required.
While other fuel rail kits may work (stock rails are not compatible), AMS can only guarantee AMS Fuel Rails to be compatible with this intake manifold.
Custom color anodizing can add 2-4 weeks to build time.
As these motorsports grade carbon fiber parts are hand laid, slight imperfections or weave pattern variances can be expected.
14035-JF00A OEM Nissan Gasket – R35 GT-R Lower Intake Manifold to Cylinder Head (Need qty. 2)
16175-ET80A OEM Nissan Gasket – R35 GT-R Throttle Body to Manifold Adapter (Need qty. 2)
